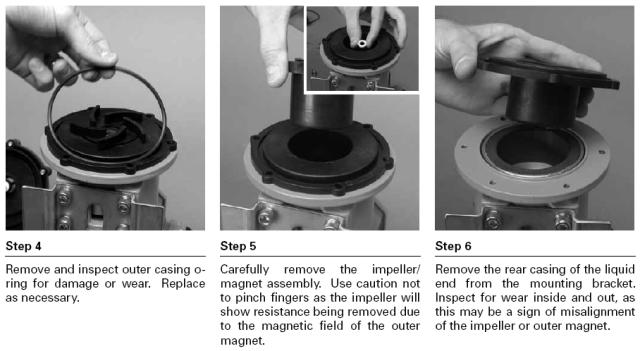

Pump Disassembly

CAUTION: Before any service is performed on a T-MAG™, all electrical lines must be disconnected and all process fluid drained from the pump. DO NOT open the pump connections if process fluid pressure remains inside the mag drive pump . Use the liquid end drain plug to drain remaining fluid from the impeller chamber.

NOTE: The model shown in this example represents all five sizes of T-MAG™.
